Liquid cooler – Water cooler WBK2380s

Van West Koeltechniek bv is a refrigeration production company with almost 100 years of experience and specialized in the design and serial production of liquid and air coolers.

Request your quote

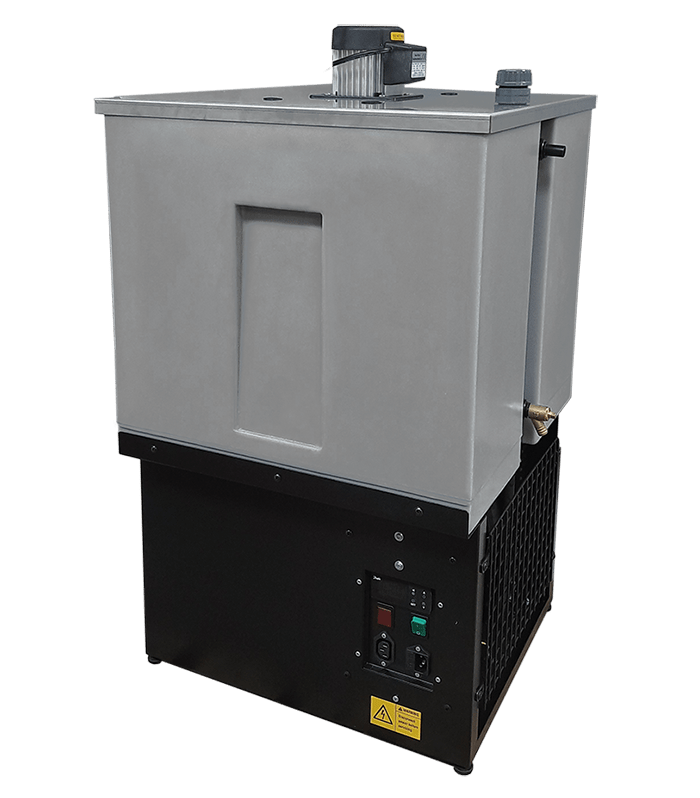

Water cooler 2380s

The water bath cooler WBK2380s is our powerful cooling machine with a large cooling capacity of approximately 2 kW. The robust cooler has an 80 liter tank as a buffer tank and therefore always delivers a high constant performance. The cooler can be used for various cooling applications, both for direct and indirect cooling. As a result, the cooling machine has many applications such as beer cooling, glycol cooling, cooling other machines such as ozone generators and more. With the electronic controller you can easily set the desired cooling parameters yourself.

Please feel free to contact us for more information, options or advice.

Product information

Download

Manual

Download



Type: WBK2380s
Outer dimensions: 520x520x830/(920)mm (incl. pump)
Mass: 60 kg/td>
Power supply: 230V-50Hz
Electric power: 975W (5/50ºC)
Cooling power: 1950W (5/50ºC)
Capacity: 165 l/u ∆T10K
Environment temp: max. 32ºC
Refrigerant: R134a
Tank capacity: 80 liter bruto
Water connection: 3/4 “BSP male thread
Execution: The sheet metal is made of powder-coated steel in the color black RAL9011. On top of this mounted a double-walled PE tank insulated with 30mm PUR. Insulated PE tank. The cooler is equipped with overflow, low level and high pressure protections. A signal lamp and a potential-free contact are provided as an indication. The regulation is done by an electronic controller with display.
